As modern electronic systems demand higher power density, stricter thermal performance, and global regulatory compliance, Switch-Mode Power Supplies (SMPS) have emerged as the foundational architecture for modern power conversion. Operating across kilohertz to megahertz switching frequencies, SMPS technology dramatically reduces physical transformer size while yielding efficiency ratings upwards of 95%. This comprehensive guide provides global procurement officers and OEM design engineers with the critical insights needed to navigate technical trade-offs, semiconductor advancements (GaN/SiC), total cost of ownership (TCO), and custom magnetics integration.
1. Fundamental Architecture & Topologies of Switch-Mode Power Supplies
Unlike traditional linear power supplies that regulate output voltage by dissipating excess energy as heat across a series transistor, a Switch-Mode Power Supply (SMPS) rapidly toggles pass transistors between high-efficiency ON (saturation) and OFF (cutoff) states. Pulse-Width Modulation (PWM) or Pulse-Frequency Modulation (PFM) controls the energy transfer to maintain a precise output DC voltage across fluctuating load and line conditions.
The core advantage of SMPS lies in the inverse relationship between switching frequency and magnetic component volume. Because the required transformer core cross-sectional area decreases as operational frequency increases, high-frequency SMPS designs achieve up to 80% weight reduction and 70% volume reduction compared to 50/60 Hz linear counterparts.
Core SMPS Topologies & Application Suitability
Selecting the optimal topology depends on input voltage range, power output rating, isolation requirements, and target energy efficiency. Below is an engineering breakdown of primary SMPS configurations:
| Topology | Power Range | Isolation | Efficiency Range | Primary Industry Applications |
|---|---|---|---|---|
| Flyback Converter | < 150W | Yes | 80% – 88% | Wall adapters, auxiliary power, IoT control boards, LED drivers. |
| Forward Converter | 100W – 500W | Yes | 85% – 92% | Telecommunications, industrial controls, mid-range instrumentation. |
| Half-Bridge LLC Resonant | 150W – 1500W | Yes | 92% – 97% | Medical imaging, server power units, EV chargers, high-end audio. |
| Push-Pull Converter | 100W – 1000W | Yes | 85% – 93% | Automotive DC-DC converters, solar inverters, battery management. |
| Buck / Boost (Non-Isolated) | 1W – 2000W+ | No | 90% – 98% | Point-of-load (POL) regulation, battery-powered embedded systems. |
⚠ Technical Information Gain: Thermal Management & Core Loss Compensation
In high-frequency SMPS design, transformer losses transition from core hysteresis dominance to eddy current and skin effect dominance in copper windings. Utilizing multi-strand Litz wire and thin-laminate or high-frequency ferrite core materials (such as MnZn oxides) is imperative above 100 kHz. Furthermore, modern zero-voltage switching (ZVS) resonant topologies virtually eliminate switching losses, shifting thermal dissipation considerations almost entirely to copper DC resistance (DCR) and magnetic core loss metrics.
2. Triad Magnetics SMPS Product Recommendations & Custom Integration
Triad Magnetics manufactures both standardized off-the-shelf components and fully tailored custom magnetics built specifically for high-efficiency switch-mode power supplies. Whether you require standard plug-in power units or high-frequency custom flyback transformers, our engineering portfolio is built to ISO 9001:2015 quality standards.

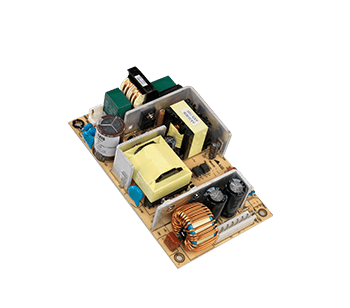

Regulated Switch-Mode Power Supplies & LED Drivers
High-efficiency, fully enclosed AC-DC power supplies providing tightly regulated DC outputs. Engineered with built-in short circuit, overvoltage, and thermal protection for continuous industrial operating environments.
View Specifications
High-Frequency SMPS Transformers & Inductors
Custom flyback, push-pull, and LLC transformers engineered for switching speeds up to 1 MHz. Designed with low leakage inductance and high creepage isolation for medical and industrial applications.
View High-Frequency Magnetics

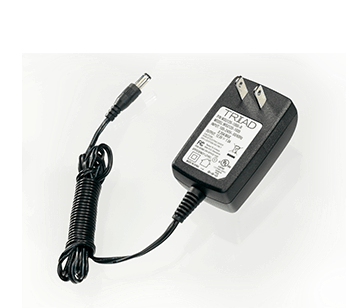

Wall Plug-In Switch-Mode Adapters
Compact, high-efficiency external power supplies meeting Level VI energy efficiency standards. Available in worldwide plug configurations with UL/cUL, CE, and FCC regulatory approvals.
Explore Plug-In Adapters
Fully Custom SMPS Transformer Design
Tailored custom power transformers, planar magnetics, and specialized chokes co-engineered with your design team to fit precise mechanical footprints and rigorous electrical specs.
Request Custom DesignEvery standard and custom product developed by Triad Magnetics undergo 100% automated electrical testing, high-potential (Hi-Pot) insulation verification, and strict thermal validation to guarantee long-term operational MTBF (Mean Time Between Failures).
3. Next-Generation SMPS Trends: GaN, SiC & Planar Magnetics
The power electronics industry is undergoing a monumental paradigm shift driven by Wide Bandgap (WBG) semiconductors and advanced magnetic packaging techniques. Global procurement teams must align with suppliers capable of staying ahead of these technical shifts:
A. Gallium Nitride (GaN) and Silicon Carbide (SiC) Integration
Traditional silicon-based MOSFETs hit physical limits regarding switching speed and thermal dissipation around 200 kHz - 500 kHz. GaN and SiC switches permit operating switching frequencies into the megahertz (MHz) domain with lower switching losses and ultra-low Rds(on). This enables a dramatic shrinkage of magnetic transformers and smoothing inductors, doubling energy density without sacrificing reliability.
B. Shift Toward Planar Magnetics
In ultra-slim form factor applications—such as high-density server power supplies, aerospace systems, and automotive EV onboard chargers—traditional wire-wound bobbin transformers are being replaced by Planar Magnetics. Planar designs utilize multi-layer PCB traces as windings surrounding flat ferrite cores. This delivers an exceptional surface-area-to-volume ratio for cooling, extremely predictable leakage inductance, and superior parasitic capacitance control.
C. Smart Power Management & Digital Loop Control
Analogue PWM control loops are increasingly yielding to digital signals processed via microcontrollers and digital signal processors (DSPs) communicating through PMBus protocols. Digital loop control enables dynamic efficiency optimization across varying loads, predictive maintenance monitoring, and real-time telemetry for data center energy management.
4. Global Procurement Trends, Supply Chain Resilience & Regulatory Compliance
Global procurement specialists face evolving macroeconomic risks, from geopolitical supply chain bottlenecks to stringent energy consumption mandates. Purchasing SMPS units is no longer purely a unit-cost comparison; it requires a strategic total cost of ownership (TCO) approach.
1. Dual-Sourcing Footprints & Supply Chain Security
Relying on a single manufacturing origin introduces significant operational vulnerability. Triad Magnetics mitigates global supply chain risk by offering dual manufacturing assets—combining flexible engineering and rapid prototyping in Southern California, USA, with high-volume, cost-effective manufacturing operations in the Philippines. This structure guarantees supply chain redundancy, protects against tariff volatility, and stabilizes component availability.
2. Navigating Global Energy & Safety Compliance Standards
Failure to meet international regulatory standards can block product entry into key global markets. When specifying SMPS components, procurement teams must verify full compliance with current international standards:
- Safety Standards: Transition from legacy UL 60950-1 and UL 60065 to the hazard-based safety engineering standard UL / IEC 62368-1 for audio/video and ICT equipment.
- Medical Grade Standards: Compliance with IEC 60601-1 (4th Edition), requiring stringent 2x MOPP (Means of Patient Protection) isolation and minimal earth leakage current (< 300 µA).
- Energy Efficiency: Adherence to US Department of Energy (DoE) Level VI and EU Code of Conduct (CoC) Version 5 Tier 2 no-load standby power draw limits (< 0.075W).
- Environmental Standards: Compliance with RoHS3 (EU 2015/863), REACH, and Conflict Minerals documentation.
5. Why Leading Global OEMs Partner with Triad Magnetics
Since 1946, Triad Magnetics has established an unmatched benchmark of Experience, Expertise, Authoritativeness, and Trustworthiness (E-E-A-T) in magnetics design and power supply manufacturing. Our enterprise capabilities provide OEMs with a distinct competitive advantage:
75+ Years of Engineering Legacy
Founded during the rise of modern radio and industrial electronics, Triad's long heritage means our engineers possess unrivaled empirical knowledge across linear and switch-mode power applications.
ISO 9001:2015 Certified Facilities
Our quality management system ensures rigorous process control, continuous improvement, and complete lot traceability across all manufacturing locations.
5,000+ Standard Part Numbers
We maintain expansive inventory stock across worldwide distributor networks, offering immediate off-the-shelf availability to streamline your product prototyping stage.
End-to-End Custom Engineering
If catalog parts do not fit your envelope, our US and international engineering teams provide rapid custom prototyping, advanced 3D CAD modeling, and full regulatory approval support.
6. Switch-Mode Power Supplies FAQ: Global Procurement & Technical Queries
Based on frequent inquiries submitted by global procurement managers and hardware design engineers through search platforms and AI assistants, Triad Magnetics provides authoritative answers below:
Linear power supplies regulate output voltage by stepping down line voltage via a heavy 50/60Hz transformer and shedding excess power as heat using a series dissipation regulator. They offer extremely low ripple noise and fast transient response but suffer from poor energy efficiency (typically 30%-50%) and substantial weight. Conversely, an SMPS converts line AC to high-voltage DC, switches it at high frequencies (50kHz to 1MHz+) through a compact ferrite transformer, and filters output DC. SMPS units deliver high efficiency (80%-97%), compact size, wide input voltage tolerance (85-264 VAC universal input), and lower shipping weight for global OEM distribution.
Gallium Nitride (GaN) and Silicon Carbide (SiC) switches allow switching speeds 5x to 10x faster than legacy silicon MOSFETs. This high switching frequency reduces the magnetic energy storage requirement per cycle, enabling the use of significantly smaller magnetic cores. However, operating at higher dv/dt ratios increases high-frequency AC copper losses (due to skin and proximity effects) and parasitic capacitance issues. Designing transformers for GaN/SiC circuits requires specialized litz wire, planar PCB trace geometries, and advanced winding interleaving to minimize leakage inductance and radiated EMI.
To provide an accurate design proposal and quotation, engineering procurement teams should supply: (1) Input Voltage Range (e.g., 90-264VAC or 48VDC); (2) Desired Output Voltages & Current Ratings (including peak load requirements); (3) Target Switching Frequency; (4) Efficiency & Standby Power Goals; (5) Mechanical Dimensional Envelopes & Mounting Style (SMD, Through-Hole, Chassis Mount); (6) Safety & Isolation Requirements (e.g., 4KV Hi-Pot, 2x MOPP medical clearance); and (7) Annual Production Quantity Projections.
High switching speeds naturally generate conducted and radiated EMI. Triad Magnetics incorporates internal shielding (such as copper Faraday shields between primary and secondary windings), optimizes transformer winding layout to balance common-mode noise, and integrates complementary common-mode chokes and differential power inductors into complete SMPS filter stages. Our designs are engineered to ensure end products meet CISPR 32 / FCC Class B EMI emission thresholds.
Single-origin supply chains are vulnerable to regional supply disruptions, trade tariffs, natural disasters, and logistics bottlenecks. Triad Magnetics maintains state-of-the-art engineering and production facilities in Perris, California, alongside high-volume production operations in the Philippines. This structure provides our OEM customers with rapid engineering turnarounds, seamless NPI (New Product Introduction), tariff mitigation, and continuous supply assurance.
