Precision Audio Frequency (AF) Transformer Engineering
Audio transformers—often designated as audio frequency (AF) transformers—are indispensable magnetic components designed to operate across the human audible frequency spectrum (20 Hz to 20 kHz) and extended ultrasonic ranges up to 100 kHz. Built with high-permeability core materials and specialized winding techniques, audio transformers isolate circuits, match differential impedances, block unwanted direct current (DC), and eliminate ground loop hum in critical signal processing applications.
Whether utilized in studio-grade pro audio equipment, industrial public address systems, commercial telecom interfaces, or military communication arrays, Triad Magnetics designs standard and custom audio transformers that strictly adhere to international engineering standards, including RoHS (2015/863/EU) and MIL-T-27E specs.
Maximum Power Transfer
Precise turns-ratio designs convert high input impedances to low output impedances (or vice versa), eliminating signal reflection and insertion loss.
Galvanic Isolation
Physical isolation between primary and secondary windings breaks ground loops, blocks DC bias voltages, and prevents hum in sensitive audio paths.
High Magnetic Shielding
Advanced Mu-Metal casing and multi-layer Trialloy shielding options reduce external electro-magnetic interference (EMI) and 60 Hz hum by up to 95 dB.
Standard & Custom Audio Transformer Product Families
Triad Magnetics manufactures over 40 standard catalog audio transformer models alongside comprehensive custom design modifications. Our U.S. Design Center in Perris, California, backed by ISO 9001:2015 certified production lines, supports rapid prototyping and volume OEM manufacturing.
Miniature Impedance Matching Transformers — Red Spec Series
Engineered for high-density environments requiring extreme reliability, the Mil-T-27E Red Spec line provides maximum durability and precision signal transmission. Featuring precision-spaced terminal pins, epoxy-molded enclosures with elevated solder-inspection recesses, and gold-plated nickel alloy leads.

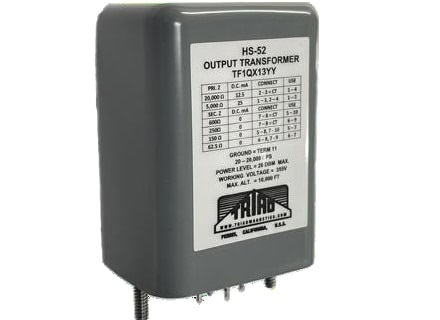

Hermetically Sealed Low-Level Audio Transformers
Recognized worldwide as the benchmark for premium audio equipment, these hermetically sealed transformers combine ultra-wide frequency response with unmatched magnetic shielding. Multiple Trialloy interleaved shielding layers with heavy copper shading rings yield up to 95 dB attenuation against external hum and RF interference.

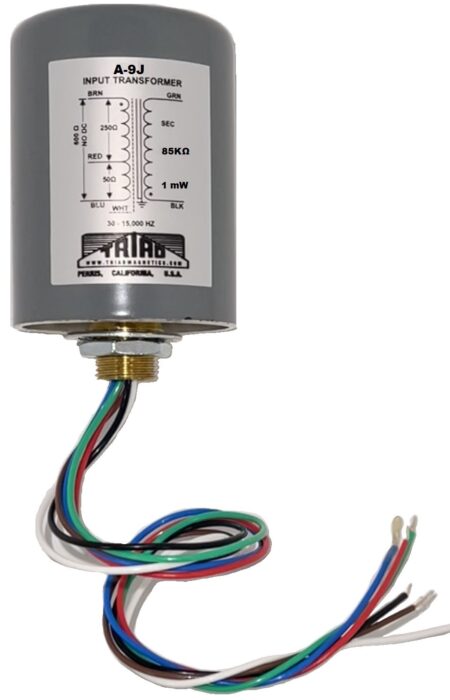

Shielded Audio Impedance Matching Transformers — J-Series
Designed to couple ultra-low input signals directly to high-gain preamplifier stages while excluding stray magnetic fields. Encased in high-permeability Mu-Metal enclosures, J-Series transformers achieve 60 dB to 80 dB hum reduction, making them ideal for high-fidelity signal step-up and low-noise isolation.
PC Mount Plug-In Printed Circuit Audio Transformers
Optimized for automated electronic assembly, these PC-mount transformers feature rugged 0.042-inch square terminal pins that resist bending during handling. Suitable for line matching, telephone line coupling, interstage coupling, and pulse trigger isolation.
Data / Voice Coupling Transformers — TY Series
Specifically developed for telecommunications interfacing, public switched telephone networks (PSTN), and voice-frequency data lines. Designed in full compliance with FCC Part 68 requirements for direct connection to leased private wirelines and carrier networks.
Audio Transformer Series Technical Specification Matrix
Review standard parameters across our main product lines to select the optimum magnetic component for your engineering requirements:
| Product Series | Frequency Range | Primary / Secondary Impedance | Shielding Efficiency | Mounting Type | Key Certifications |
|---|---|---|---|---|---|
| Red Spec Series | 300 Hz – 100 kHz | 10 Ω to 250 kΩ | Standard Encapsulated | PCB Plug-in (0.020" Pins) | MIL-T-27E, RoHS Compliant |
| Hermetically Sealed | 20 Hz – 50 kHz | 50 Ω to 100 kΩ | Up to 95 dB (Trialloy) | Chassis Mount / Stainless Studs | MIL-T-27, ISO 9001:2015 |
| J-Series Shielded | 20 Hz – 30 kHz | 150 Ω to 600 Ω (Step-up) | 60 dB – 80 dB (Mu-Metal) | Leaded / Enclosed Case | RoHS Compliant |
| PC Mount Standard | 20 Hz – 20 kHz | 600 Ω CT to 10 kΩ | Optional External Foil | PCB Through-Hole (0.042" Pins) | UL Recognized, RoHS |
| TY Telecom Series | 300 Hz – 3.5 kHz | 600 Ω : 600 Ω Nominal | Line Balancing Shield | PCB Mount / Surface Mount | FCC Part 68 Compliant |
Custom Audio Transformer Engineering & OEM Modifications
When off-the-shelf transformers do not satisfy demanding electrical or mechanical envelope requirements, Triad Magnetics provides full custom engineering. Our engineering team assists global OEM buyers with custom turns ratios, specialized core geometries (Nickel-Iron laminations, ferrite, toroidal), custom pin configurations, high-voltage insulation barriers, and specialized military/medical potted housings.
With rapid prototype prototyping capabilities in Perris, California, and high-volume cost-optimized offshore production in the Philippines, we balance technical speed with global supply chain efficiency.
Ready to Discuss Your Audio Transformer Project?
Consult with Triad Magnetics senior applications engineers for technical advice, custom specification reviews, or volume price quotations tailored for your global procurement needs.
