High-Efficiency External AC/DC Power Adapters, Switch-Mode Power Supplies & Medical-Grade Wall Power Solutions for Global OEM Applications.
Many modern commercial, industrial, and medical devices require stabilized low-voltage power directly from standard grid lines. Triad Magnetics engineers and manufactures high-performance wall plug-in transformers—commonly designated as AC adapters, wall power supply units, wall bumps, or external power supplies. Our solutions eliminate internal thermal buildup within target electronics, significantly optimizing casing size, device weight, and long-term operating reliability.
OEM Global Compliance: All standard Triad wall plug-in transformers fully comply with the European Union RoHS 2015/863/EU Directive, US Department of Energy (DOE) Level VI energy efficiency standards, and international UL / cUL / CE safety standards.
Engineering Capabilities: From standard off-the-shelf catalog configurations to fully customized housing geometry, custom cable lengths, output plug polarities (-R models), and custom voltage matching, Triad's application engineers deliver precision power solutions tailored for high-reliability global deployment.
Triad Magnetics maintains rigorous quality control under ISO 9001:2015 certified protocols. Our plug-in adapters undergo full dielectric withstand, temperature rise, efficiency, and safety testing prior to volume distribution.
Explore our optimized product lines designed for commercial, industrial, medical, and residential equipment:

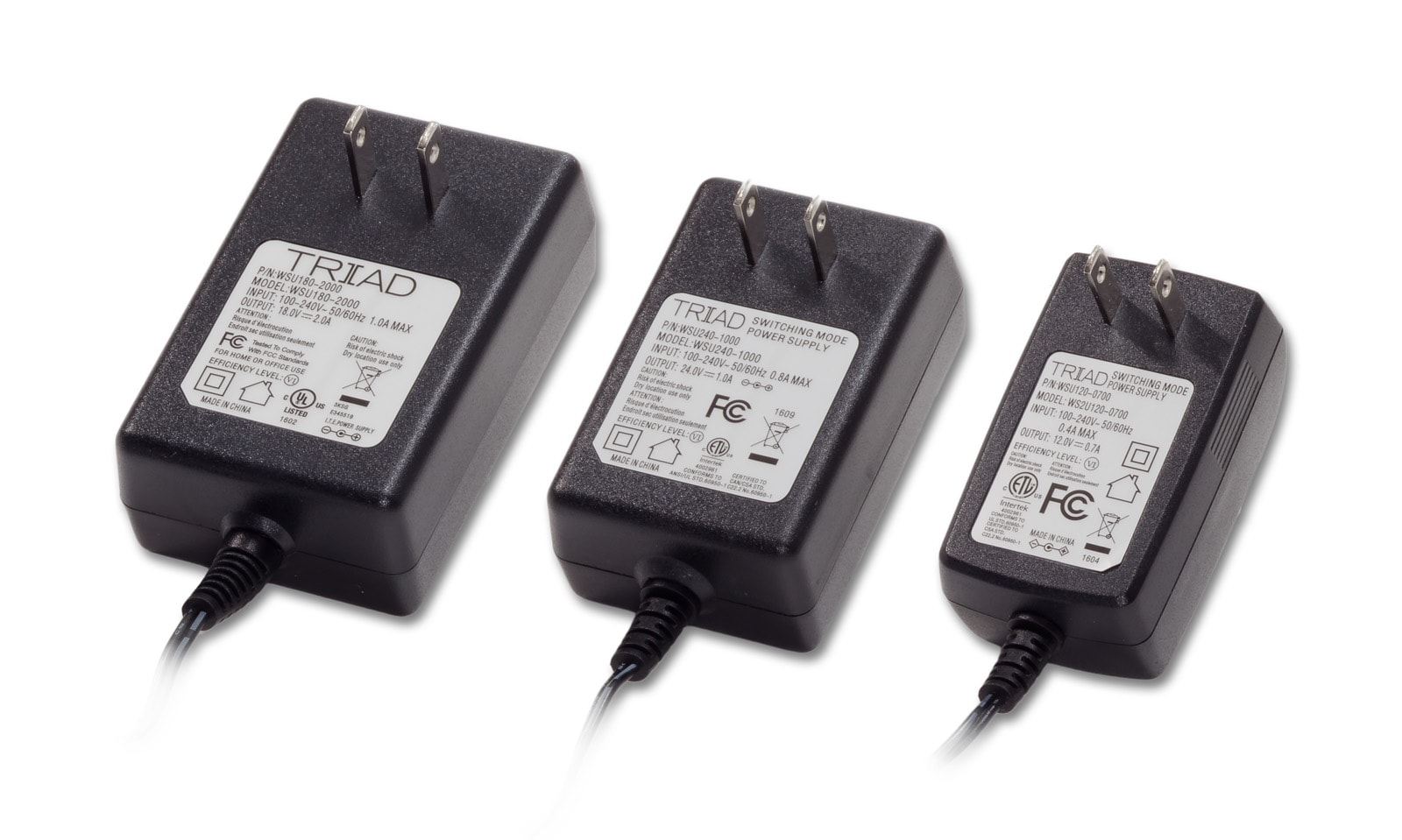

High-efficiency regulated wall plug-in SMPS operating at 50/60 Hz with 100-240VAC universal input. Delivers low standby power draw, zero noise interference, and Level VI efficiency with standard 6-foot heavy-duty output cables.

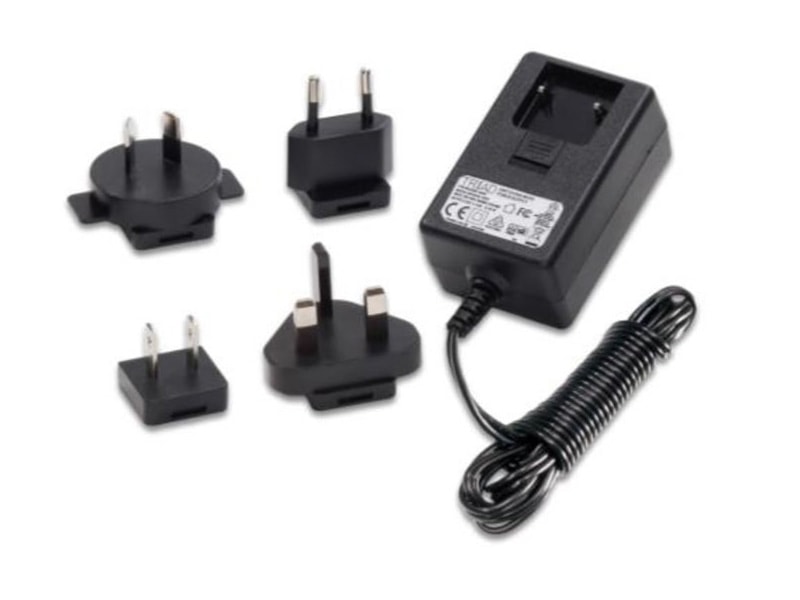

Designed for global deployment featuring quick-change AC input blade clips (North America, European Union, United Kingdom, and Australia). Provides universal 100-240V input and regulated 5V to 24V DC output at 24W total capacity.

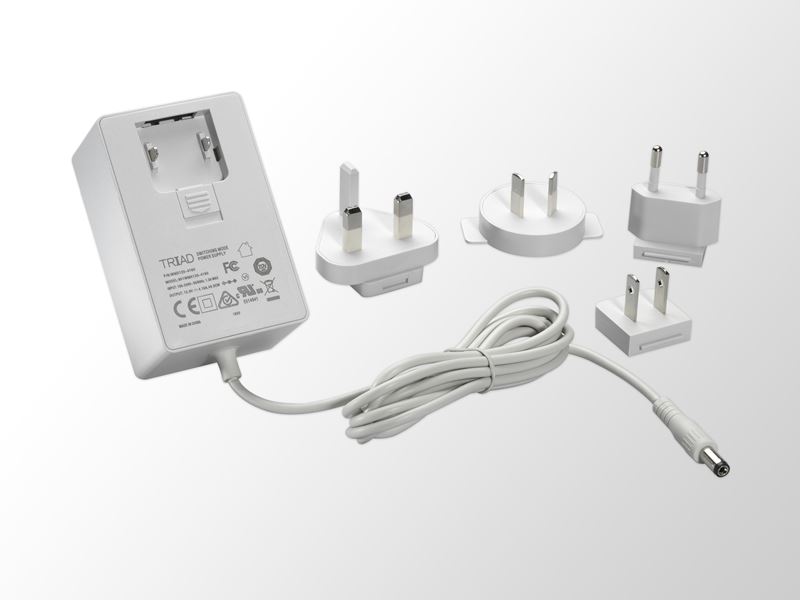

Certified to CB / EN / IEC / ANSI 60601-1 third-edition medical safety standards with 2 MOPP protection. Includes Class II insulation requiring no functional frame ground, low leakage currents (<100µA), and high power stability.

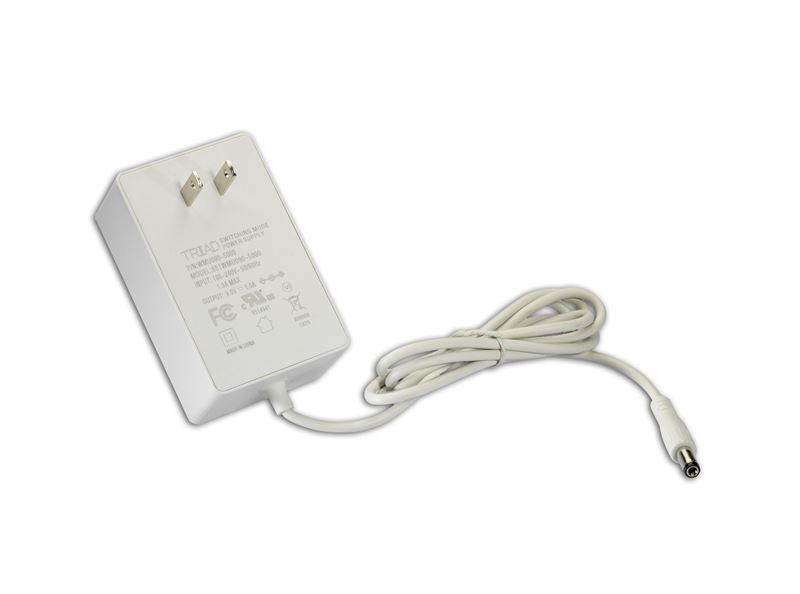

Dedicated NEMA 1-15 fixed-blade power supplies specifically designed for North American medical equipment applications. Offers reverse polarity output configurations (-R) and ultra-low noise medical ripple ratings.

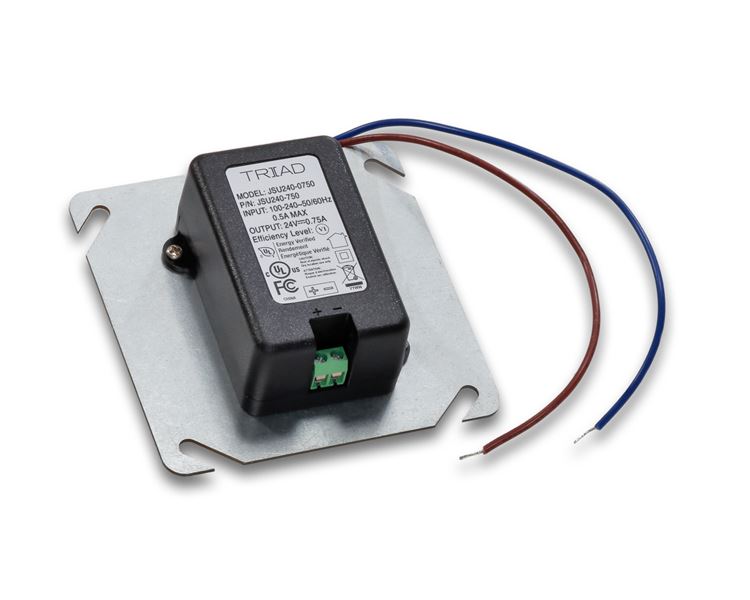

Engineered for permanent stationary installations requiring direct hardwired power connection within standard electrical junction boxes. Eliminates exposed cabling risks for commercial security, automation, and HVAC sensors.

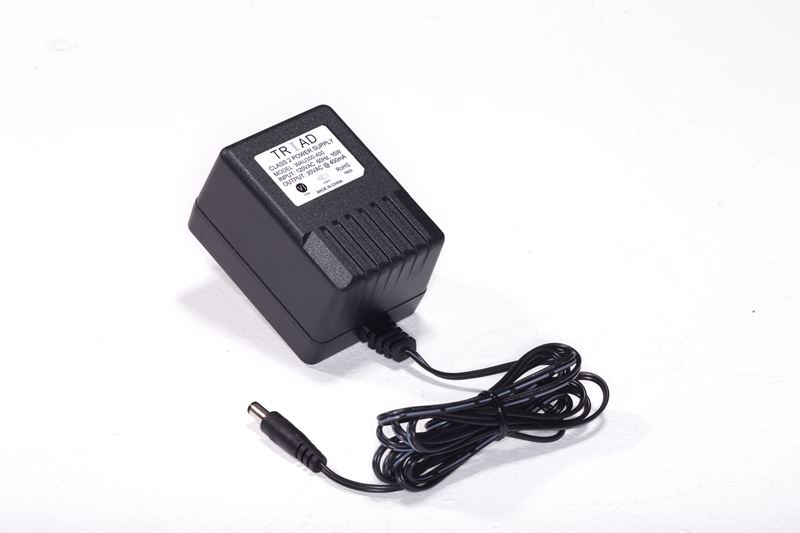

Heavy-duty AC-to-AC step-down wall transformers meeting US Department of Energy Level VI energy standards. Encapsulated in high-impact thermoplastic molded enclosures for superior mechanical durability and thermal resistance.
Compare standard operational parameters across Triad Magnetics' core wall plug-in product families:
| Product Line | Input Voltage Range | Output Voltage / Power | Efficiency Rating | Safety Approvals | Target Applications |
|---|---|---|---|---|---|
| WSU Series (SMPS) | 100-240 VAC, 50/60Hz | 5.0VDC – 24.0VDC (Up to 36W) | DOE Level VI / CoC Tier 2 | UL/cUL 62368-1, CE, FCC | Consumer Electronics, Telecom, Wireless Routers |
| WMX / WMU Series | 90-264 VAC, 47/63Hz | 5.0VDC – 24.0VDC (2 MOPP) | DOE Level VI / ErP Ecodesign | ANSI/AAMI ES60601-1, IEC 60601-1 | Medical Diagnostic Tools, Patient Monitors |
| JSU Junction Series | 90-264 VAC, 50/60Hz | 12VDC (1.5A) / 24VDC (0.75A) | Level VI Compliant | UL 60950-1, UL 1310 Class 2 | Building Security, HVAC Controls, Smart Sensors |
| Level VI AC Output | 120 VAC, 60Hz | 6.0VAC – 24.0VAC (12VA) | DOE Level VI Standards | UL/cUL File E341931, UL 1310 | HVAC Actuators, Access Control, Pro Audio |
When standard off-the-shelf transformers do not satisfy demanding mechanical constraint specifications, thermal requirements, or specialized pinout configurations, Triad Magnetics provides complete custom engineering design and manufacturing services.
Our engineering support services include custom electrical winding configurations, specialized cable strain relief designs, private label branding enclosures, custom DC connector tip selection, and prototype turnarounds backed by state-of-the-art production facilities in the USA and Philippines.
Our dedicated engineering team is ready to discuss your electrical parameters, custom plug-in requirements, and global procurement needs.
Contact Us
